Cat 3056 Marine Generator Sets

Pleasure Craft Ratings High Performance - 313 bkW (420 bhp) 426 mhp at 2800 rpm

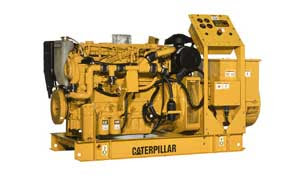

Cat 3056 Marine Generator Set

Cat 3056 Marine Generator Specifications:
  • 84 ekW (105 kV•A) at 1500 rpm 60 Hz
  • 99 ekW (124 kV•A) at 1800 rpm 60 Hz
  • Configurations - In-line 6 cylinder
  • Cycle - 4-Stroke-Cycle-Diesel
  • Bore x Stroke - 100 mm (3.94 in) x 127 mm (5.0 in)
  • Displacement - 6.0 L (365 cu in)
  • Governor - Mechanical
  • Aspiration - Turbocharged
  • Weight - 1185-1192 kg (2607-2622 lb)
  • LxWxH (mm) - 1767.5 mm x 700 mm x 1187 mm

Cat 3056 Available with Marine Classification Society package option. Also available in a radiator cooled arrangement...
